Huepar HX04CG Laser Level
Technical Indicators
- Model: HX04CG Laser Level
- Laser Wavelength: 505-520nm
- Leveling/Compensation Range: ±3.5°
- Laser Beams: OSRAM Brighter Green
- Charging Time: About 3.5 Hrs
- Operating Time: 6 Hrs with All Lines On
- Power: Li-ion 3.7V/5200mAh
- Self-leveling Time: ≤3S
- Charging Socket: Type-C
- Mount Size: 1/4"-20 & 5/8"-11
- Work Temperature: -10°C~+50°C
- Storage Temp Range: -20°C~+70°C
- IP Rating: IP54
- Laser Class: Class 2 (IEC/EN60825-1/2014)<1mW
Upgraded Green Laser
Explore the remarkable capabilities of the Huepar HX04CG, featuring an upgraded green beam laser with brightness far exceeding that of ordinary beams. Whether you're working on a major construction project or a home DIY task, this tool offers a brighter, sharper reference line that ensures precision and efficiency in every job.
- Upgraded Green Beam: Superior brightness that guarantees excellent visibility, even in demanding conditions.
- Ordinary Green Beam: Lower brightness, more suited for use in low-light environments.

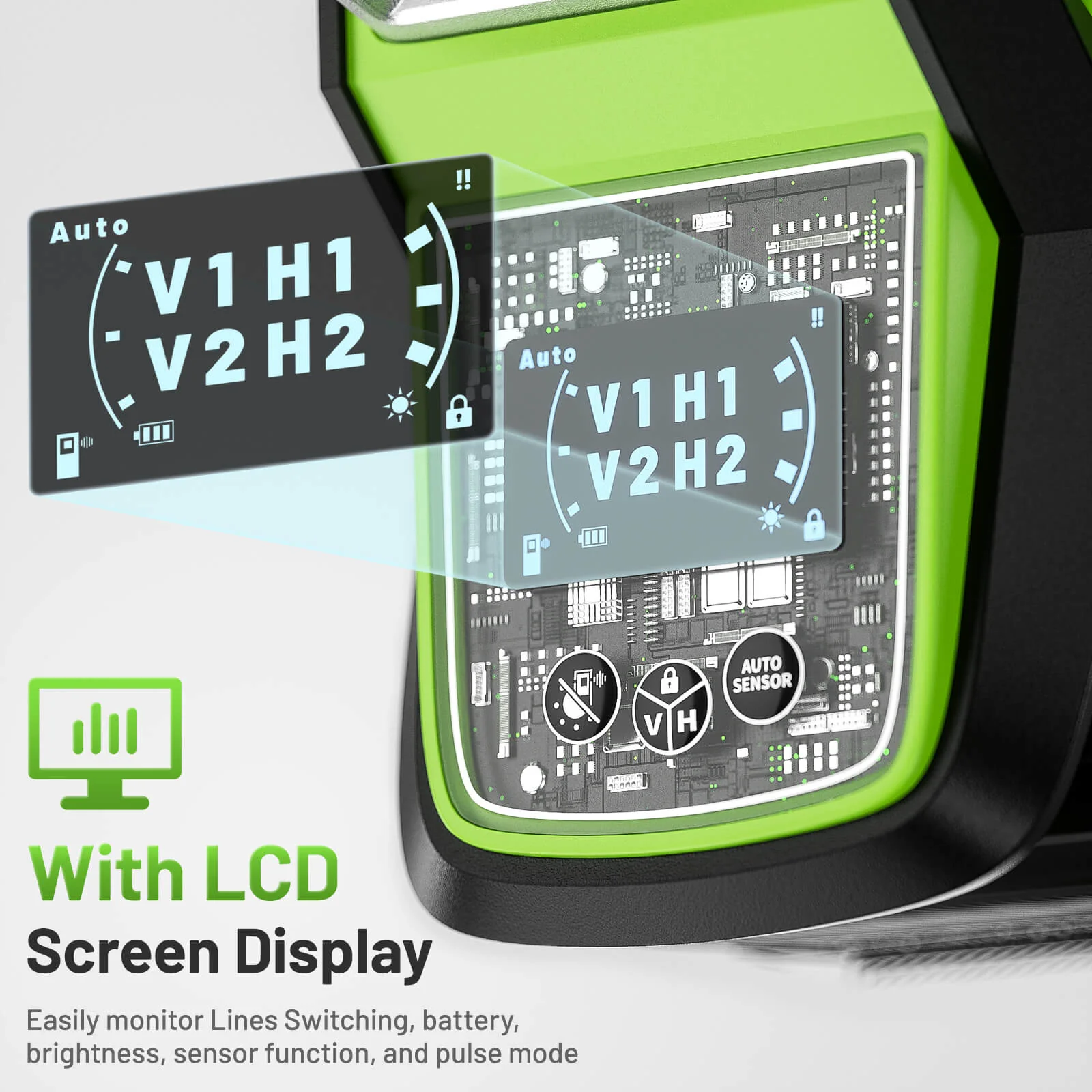

Equipped with an LCD Display
The Huepar HX04CG features a modern LCD display, providing an intuitive monitoring experience that makes the workflow smarter. With the LCD display, you can easily track the laser's working status—real-time monitoring of laser line modes, battery level, brightness adjustments, sensor status, and pulse mode switching. All information at a glance makes the operation more convenient and helps you stay efficient in various working environments, allowing you to achieve precision and efficiency effortlessly.

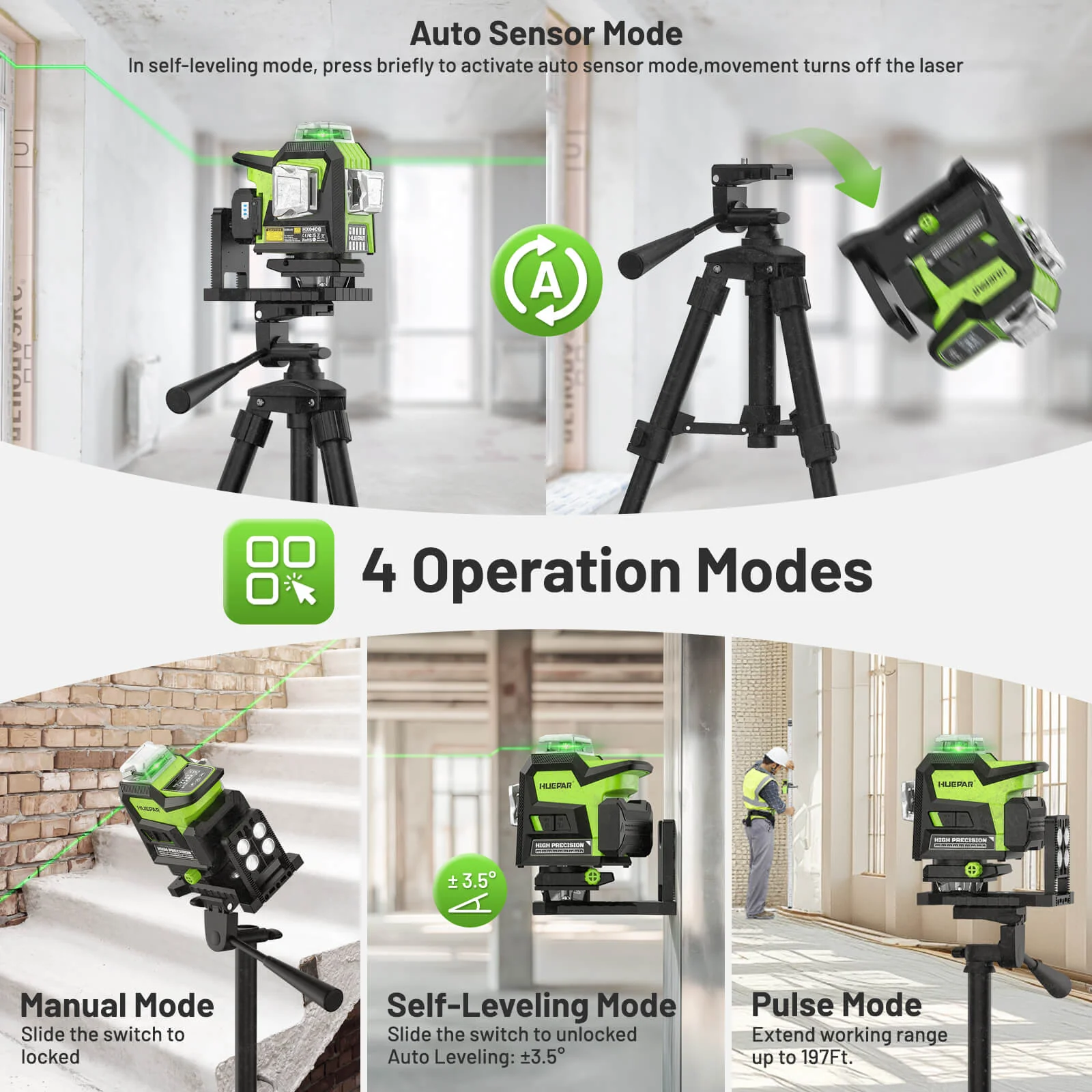

Self-levelling Mode & Manual Mode
- Auto Sensor Mode: Automatically adjusts laser level, minimizing manual intervention.
- Manual Mode: Allows flexible manual adjustments for specific angles.
- Self-Leveling Mode: Quick auto-calibration for precise, efficient operations.
- Pulse Mode: Optimized for outdoor use, extends visibility with a receiver.
IP54 Rated & Metal Laser Window
Built to withstand the elements, the Huepar HX04CG offers IP54-rated protection against water and dust, ensuring reliability in the toughest conditions. Its robust construction features metal laser windows for enhanced durability, providing optimal performance even in rugged environments.

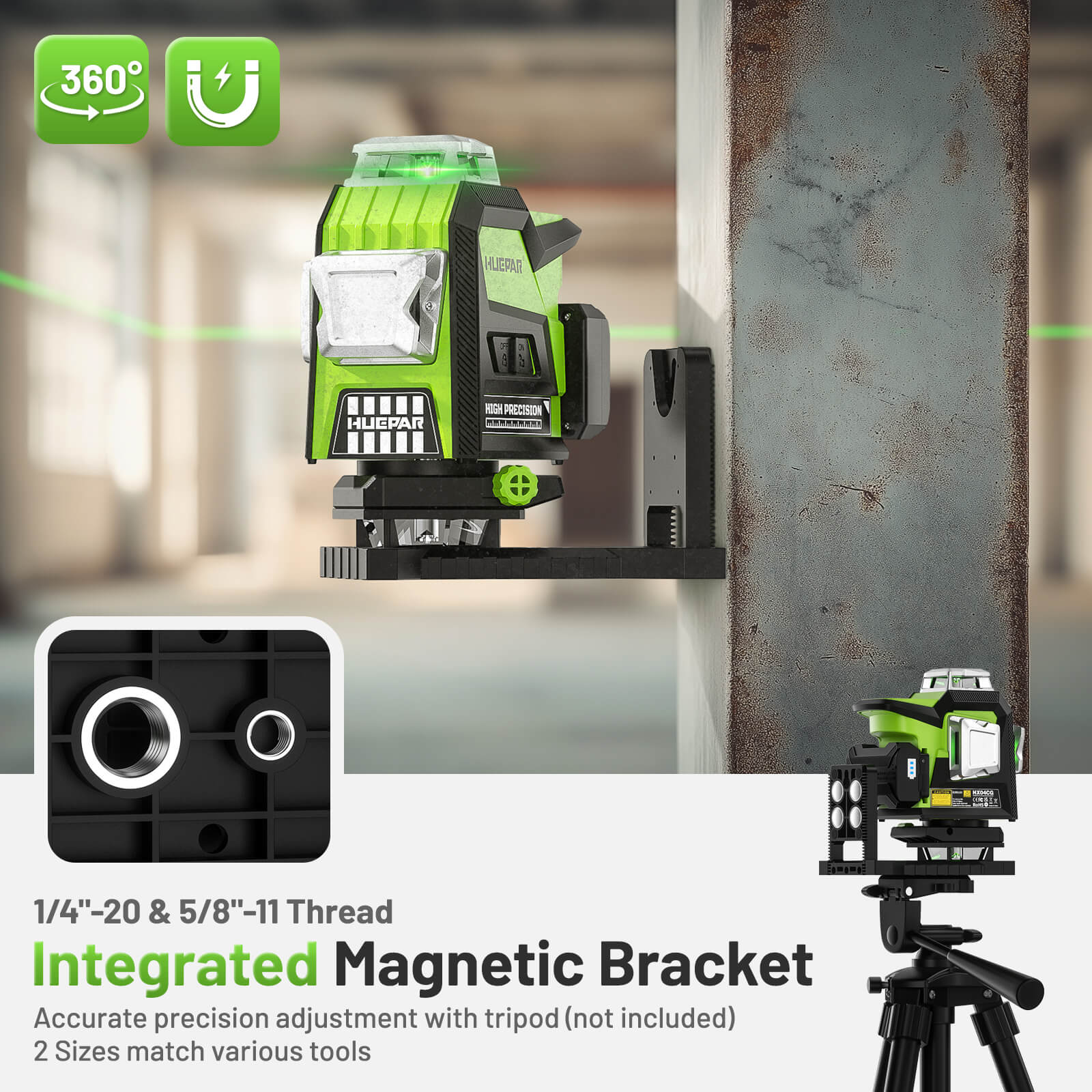

360° Multi-Functional Magnetic Bracket
The Huepar HX04CG comes with a 360° Multi-Functional Magnetic Bracket, designed for effortless versatility. Whether you're positioning the device on a wall, column, or using a tripod (not included), this bracket provides flexible mounting solutions, ensuring precise alignment in any scenario.
Additionally, the 1/4"-20 and 5/8"-11 thread sizes ensure compatibility with a variety of tools, offering maximum flexibility for different tasks. Whether mounting on a wall, column, or using a tripod, this bracket offers easy and reliable installation.

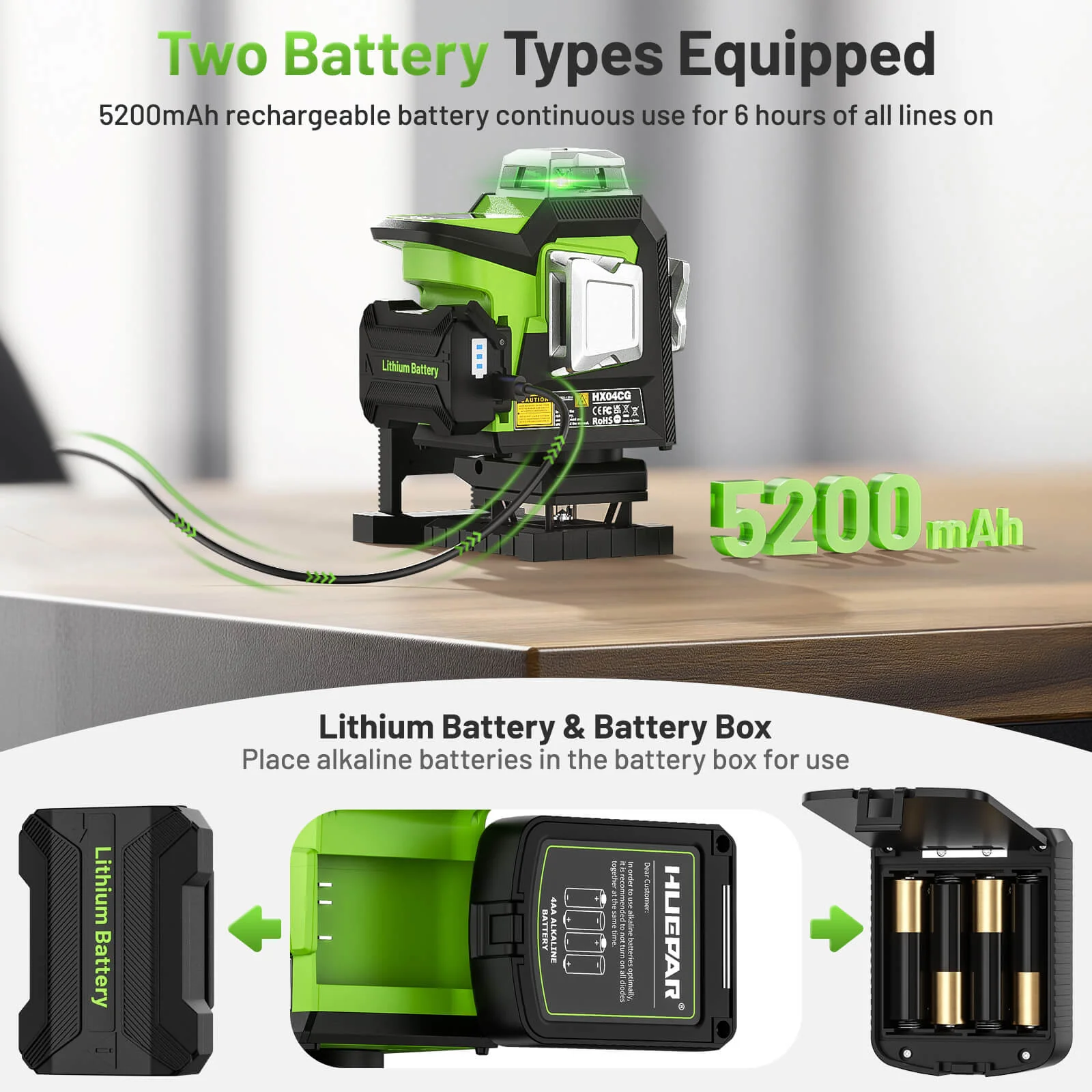

Two Battery Types Equipped for Maximum Flexibility
The Huepar HX04CG offers dual battery options, giving you the freedom to choose between a powerful 5200mAh lithium battery or a convenient battery box. Therechargeable 5200mAh lithium batteryallows for continuous use for up to 6 hours with all lines active, ensuring long-lasting performance on demanding projects. Alternatively, thebattery boxoffers flexibility by allowing the use of standard AA batteries, providing a reliable backup when needed. This thoughtful design keeps your work uninterrupted, giving you the power to stay productive, no matter the task at hand.
More accurate & Smart Laser Measurement Solutions
- Function: An LCD display shows real-time status, unlike many similar products that lack this feature.
- Accuracy: Offers an accuracy of ±2mm/10m, significantly surpassing other products with ±2mm.

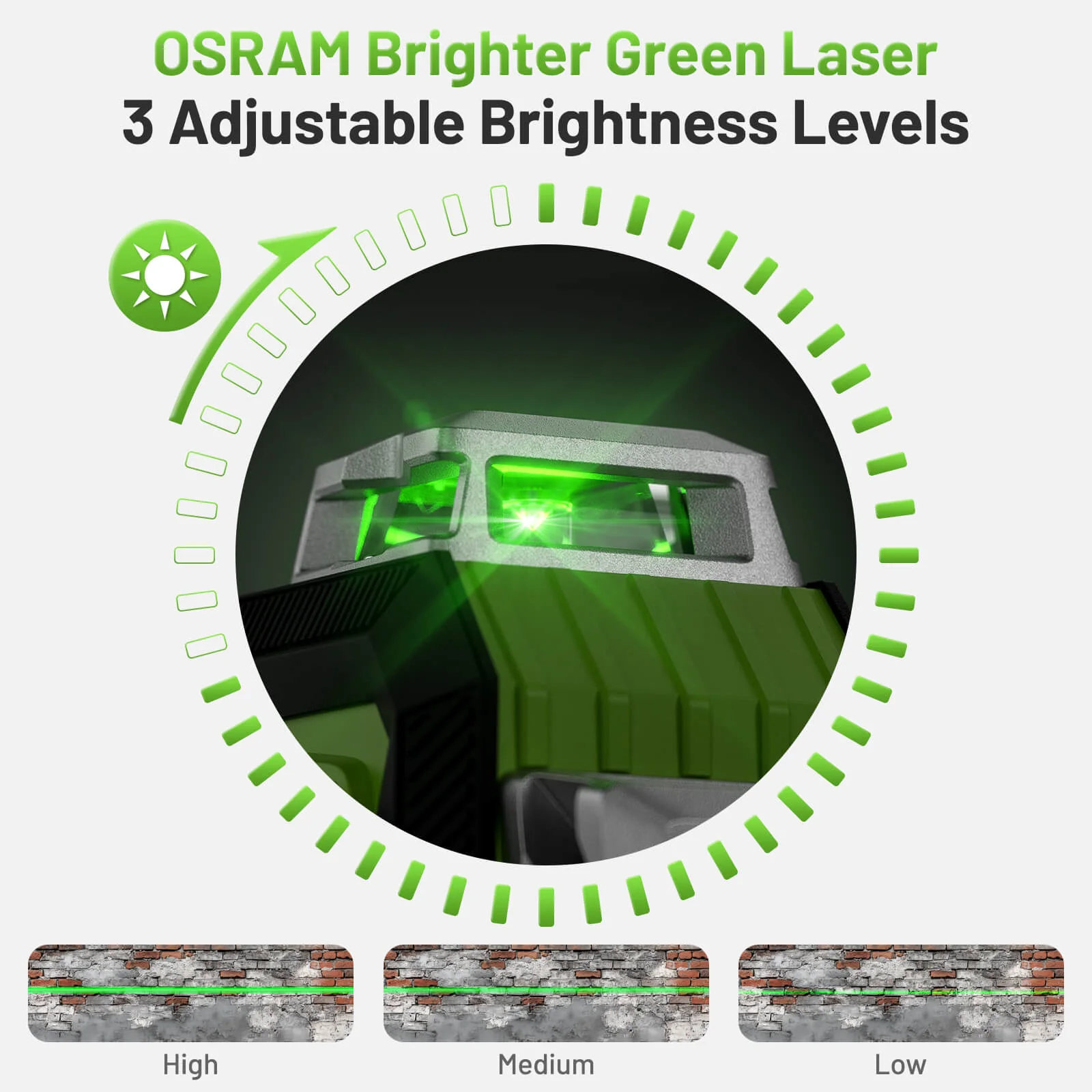

- Brightness: Features 3 adjustable brightness levels to adapt to different lighting conditions, guaranteeing laser visibility. Competing models often lack this adjustability, limiting usability.
- Operation Modes: Supports Self-Leveling, Manual, Auto Sensor, and Pulse Modes, offering more flexibility than products with only basic modes.
